IW-RS104-07

1U NVMe Hybrid Storage Server

.Compliance for Intel® Xeon Scalable family
.Backplanes with Mini-SAS HD, Oculink or Slimline connectors
.1U with 4 x hot-swappable 3.5" NVMe/SAS/SATA bays
.Supports maximum 7 x 2.5" SSD drives (4 x external drives and 3 x internal drives)
.Supports full-height PCIe slot x 1 (via riser card)
.Low acoustic noise and reduced vibrations for greater reliability
.Supports single or 1U 1+1 Redundant PSU
.Customizes the I/O Shield back plate for specific motherboards with SGCC material

Reliable Hybrid Storage Server

Conforming to Intel® Xeon Scalable family with an NVMe hybrid system,
the IW-RS104-07 caters to the needs of enterprises to conduct their business affairs.

Intel® Xeon Scalable family
2.5"/3.5" HDD
x 4 bays
40 x 56mm fans x 6
Redundant PSU
750W
Single PSU
650W
26" deep chassis
28" slide rails

High-Efficiency Solutions

The IW-RS104-07 provides a robust and scalable solution for search engine, data center, cloud computing, virtualization, and enterprise environments.

Optimal Flexibility and Expandability

NVMe (Slimline or Oculink) & SAS/SATA Backplane

There is much greater flexibility for customers in choosing their own 1U backplane.
InWin offers such specifications as NVMe (Slimline/Oculink) and SAS/SATA.


2.5" SSD drive


2.5" SSD drive


2.5" SSD or ODD drive

Storage Options

The IW-RS104-07 is designed with the mixture of 4-bay 2.5"/3.5" SAS/SATA
and U.2 NVMe, and holds 3 internal SSD drives (including an ODD drive).
Customers can mix drives of different types and sizes to meet their demands of
the various storage environments.

Full-Height PCIe Slot

The IW-RS104-07 in support of full-height PCIe slot x 1 can be horizontally attached to
InWin's PCIe riser card in the rear of the chassis.


Single PSU

Redundant PSU

Power Supply Units

InWin's 07 Series 1U rackmounts can be carried out in compliance with single or redundant power supply units.
The single PSU offered is 80 Plus Gold certified. Our redundant PSUs are 80 Plus Platinum certified
and can keep the system operational when one of the PSUs fails.

Power Supply Cable Information

Single PSU Cable Information

24-Pin
Main Power Connector

8-Pin CPU

8-Pin CPU

8-Pin
Backplane Power

6-Pin
Backplane Power

4-Pin Peripheral
Power Connector

SATA Power

PMBus
Redundant PSU Cable Information

24-Pin
Main Power Connector

8-Pin CPU

8-Pin CPU

8-Pin
Backplane Power

6-Pin
Backplane Power

SATA Power

PMBus

Superior Heat Dissipation

InWin’s fans can effectively remove heat to reduce the temperature level of the entire chassis.
The design of their anti-vibration is conducive to reducing noise.

I/O Shield Back Plate

InWin can customize the I/O Shield back plate for specific motherboards, with SGCC material,
to fullfill our customers' requirements.




Tool-less Features

Screwless items allow users to smoothly assemble their rackmount.

Ball-bearing slide rails

Top cover open button

3.5" to 2.5" HDD tray

PCle riser card bracket

Dimensions

Specification
Industry Standard EIA-RS310D
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay • External: Supports slim ODD x 1
Supports 2.5"/3.5" hot-swap trays x 4
• Internal: 2.5" x 2 or x 3 (via slim ODD conversion tray)
Power Supply Supports:
• 750W 1U 1+1 redundant PSU, 80 Plus Platinum
• 650W 1U single PSU, 80 Plus Gold
Indicator Power LED, LAN1/LAN2/LAN3/LAN4 LED, System LED, HDD LED, ID LED
Front Control Panel Power on/off, Reset, NMI, ID SW, USB 3.0 x 2
Backplane-1 • Host: Mini-SAS HD (SFF-8643) x 1, Slimline (SFF-8654) x 4
• HDD: NVMe/SAS/SATA x 4
Backplane-2 • Host: Mini-SAS HD (SFF-8643) x 1, Oculink (SFF-8611) x 4
• HDD: NVMe/SAS/SATA x 4
Backplane-3 • Host: Mini-SAS HD (SFF-8643) x 1
• HDD: SAS/SATA x 4
Cooling Fan 40 x 56mm PWM easy-swap fans x 6, 21500RPM modular design with anti-vibration
Expansion Slot Full-height PCIe slot x 1 (via riser card)
Material • Material: SGCC
• Thickness: 1.0mm
Rail Kit Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only) 676.5 x 438 x 43.4mm
(26.6" x 17.2" x 1.7")
Package Dimensions (DxWxH) 820 x 590 x 175mm
Weight (Chassis Only) • Net weight: 7.74kg
• Gross weight: 10.53kg
Cubic Feet 2.99
Container Information Single packing with pallets:
• 20': 200pcs
• 40': 460pcs
• 40' HQ: 552pcs

12Gb/s Backplane Specifications

Backplane-1 Mini-SAS HD & Slimline Backplane
Dimension (W x H) 416.6mm x 33mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1, Slimline (SFF-8654) x 4
HDD Interface NVMe/SAS/SATA x 4

Backplane-2 Mini-SAS HD & Oculink Backplane
Dimension (W x H) 416.6mm x 33mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1, Oculink (SFF-8611) x 4
HDD Interface NVMe/SAS/SATA x 4

Backplane-3 Mini-SAS HD Backplane
Dimension (W x H) 416.6mm x 33mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1
HDD Interface SAS/SATA x 4
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.

Item Download Preview
IW-RS104-07 eDM
IW-RS104-07 Gallery -
IW-RS104-07 Compatibility List
IW-RS104-07 User Manual
IW-RS104-07 Passive SAS/SATA Backplane User Manual
Item Part Number Description Support Picture
Slide Rail 3RAMIS148100 28" tool-less & ball-bearing slide rail 1
Slide Rail 3RAMIS152300 / 3RAMIS152400 28" tool-less & ball-bearing slide rail with CMA support 1 set
Cable 3RAMW4031700 Mini SAS 12G cable SFF-8643 to SFF-8643, 800mm 1
Power Supply 3RAMAP028600 650W 1U single PSU, 80 Plus Gold 1
Power Supply 3RAMAP030400 750W 1U redundant PDB power cage 1
Power Supply 3RAMAP028000 750W 1U redundant module, 80 Plus Platinum Max.2
Backplane 2RBTVI002301 Mini-SAS HD & Slimline backplane 1
Backplane 2RBTVI002201 Mini-SAS HD & Oculink backplane 1
Backplane 2RBTVI001900 Mini-SAS HD backplane 1
Back I/O Shield Plate 2RAKIQ020900 Rear I/O shield- ASRock EP2C624D16NM 1
Back I/O Shield Plate 2RAVIQ039500 Rear I/O shield- ASRock EP2C624D16NM w/Mezzing 1
Back I/O Shield Plate 2RAVIQ051200 Rear I/O shield- ASRock EP2C612D16C-4L 1
Back I/O Shield Plate 2RAVIQ051300 Rear I/O shield- ASRock EP2C622D16-2T 1
Back I/O Shield Plate 2RAKIQ020800 Rear I/O shield- ASUS Z11PR-D16 1
Back I/O Shield Plate 2RAKIQ021100 Rear I/O shield- Gigabyte MD61-SC2 1
Back I/O Shield Plate 2RAKIQ021000 Rear I/O shield- Intel H28527 S2600CW2R 1
Back I/O Shield Plate 2RAKIQ021200 Rear I/O shield- Tyan S7100AG2NR 1
Back I/O Shield Plate - InWin can customize the I/O Shield back plate for specific motherboards, with SGCC material, to provide the highest flexibility for your computing needs. 1
HDD Tray 2RAKPH038000 2.5"/3.5" hot-swap HDD tray Max. 4
HDD Tray 2RAKPH038100 2.5"/3.5" hot-swap HDD tray (NVMe) Max. 4
Fan 3RAMFB016400 40 x 56mm PWM easy-swap fan, 21500RPM Max.6
Fan 2RAKFB011800 40 x 56mm PWM easy-swap fan & fan bracket Max.6
Riser Card 3RAMPD038000 PCIe Gen3 x16 riser card, left-facing 90 degree design 1
Others 2RAKIP012002 Mesh front panel 1

Product Video

InWin 07 Series 1U Rackmount|IW-RS104-07 & IW-RS110-07

InWin 07 Series 1U Rackmount|IW-RS104-07 & IW-RS110-07


Tutorials

07 Series Motherboard & Expansion Card Installation

07 Series Motherboard & Expansion Card Installation

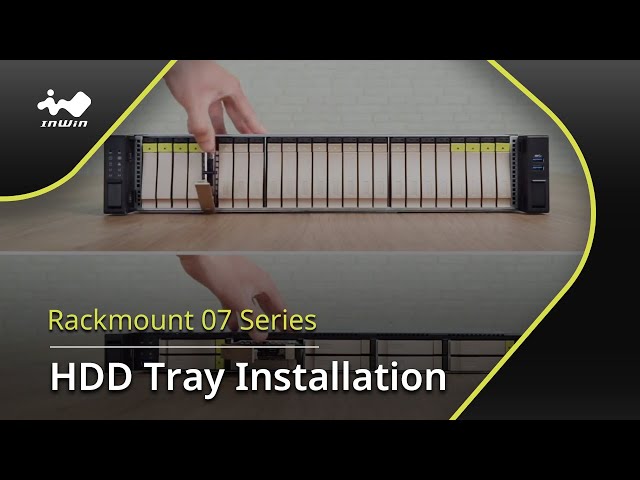

07 Series HDD Tray Installation

07 Series HDD Tray Installation

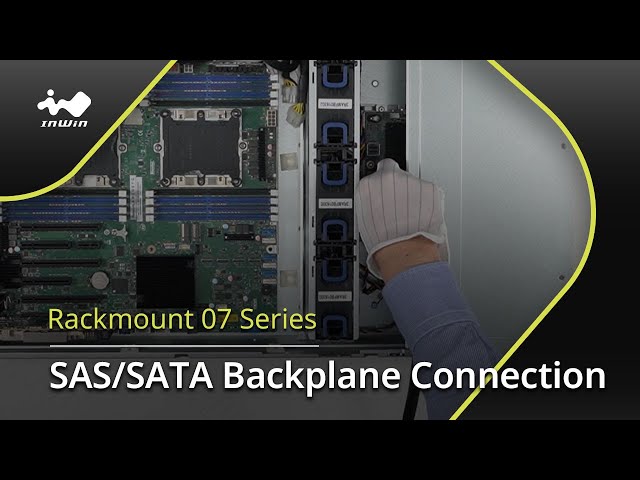

07 Series SAS/SATA Backplane Connection

07 Series SAS/SATA Backplane Connection

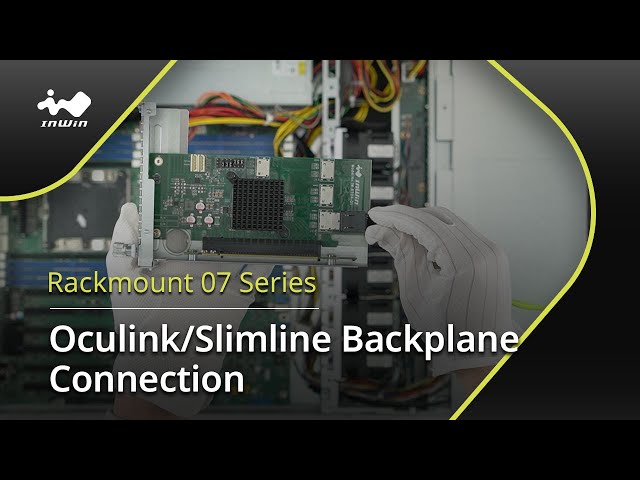

07 Series Oculink/Slimline Backplane Connection

07 Series Oculink/Slimline Backplane Connection

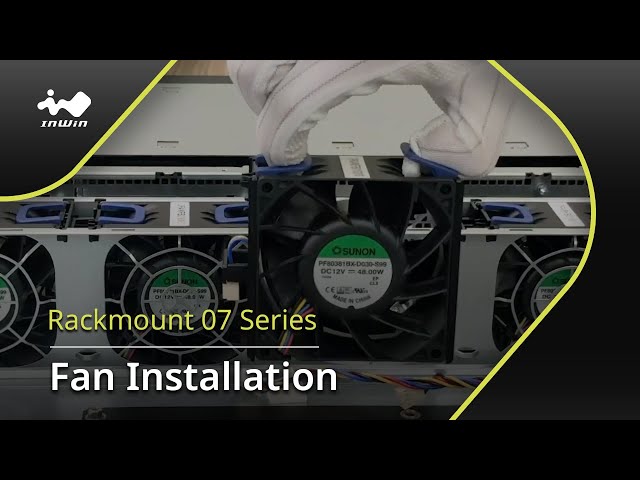

07 Series Fan Installation

07 Series Fan Installation

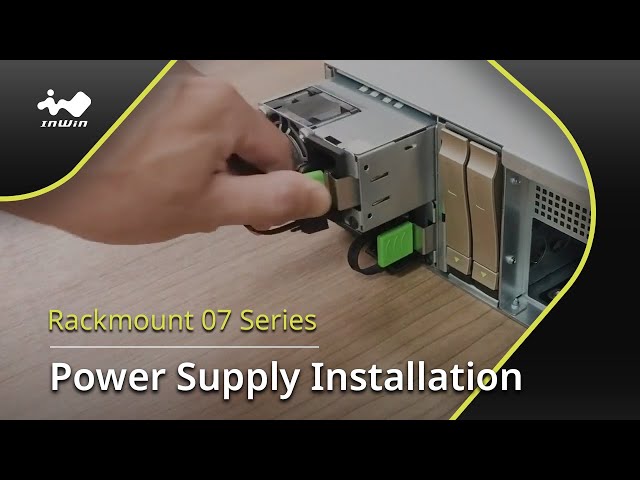

07 Series Power Supply Installation

07 Series Power Supply Installation

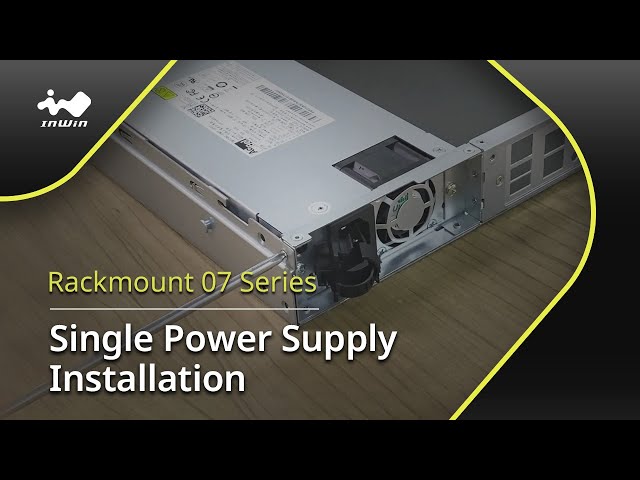

07 Series 1U Single Power Supply Installation
