IW-RS110-07

1U NVMe Hybrid Storage Server

.Compliance for Intel® Xeon Scalable family
.Backplanes with Mini-SAS HD, Oculink or Slimline connectors
.1U with 10 x hot-swappable 2.5" U.2 NVMe/SAS/SATA SSD bays
.Supports full-height PCIe slot x 1 (via riser card)
.Low acoustic noise and reduced vibrations for greater reliability
.Supports single or 1U 1+1 Redundant PSU
.Customizes the I/O Shield back plate for specific motherboards with SGCC material

High-Performance Hybrid Storage Server

The IW-RS110-07, an NVMe hybird storage server, is fully compliant with Intel® Xeon Scalable family.
Its storage configurations provide customers more flexibility in reaching various occupational tasks.

Intel® Xeon Scalable family
2.5" SSD
x 10 bays
40 x 56mm fans x 6
Redundant PSU
750W
Single PSU
650W
26" deep chassis
28" slide rails

Multi-Application Solutions

The IW-RS110-07 provides a high-density solution for graphical design workstation, data center,
and supercomputer applications. Best applied in cloud, virtualization, and enterprise environments.

Optimal Scalability and Compatibility



NVMe (Slimline or Oculink) & SAS/SATA Backplane

There is much greater flexibility for customers in choosing their own 1U backplane
because InWin offers such specifications as NVMe (Slimline/Oculink) and SAS/SATA.

Storage Options

The IW-RS110-07 has 10-bay 2.5" SAS/SATA that can be fully compliant with a maximum of 10-bay U.2 NVMe.
The storage configurations, according to customers' preferences, can be used in various combinations.

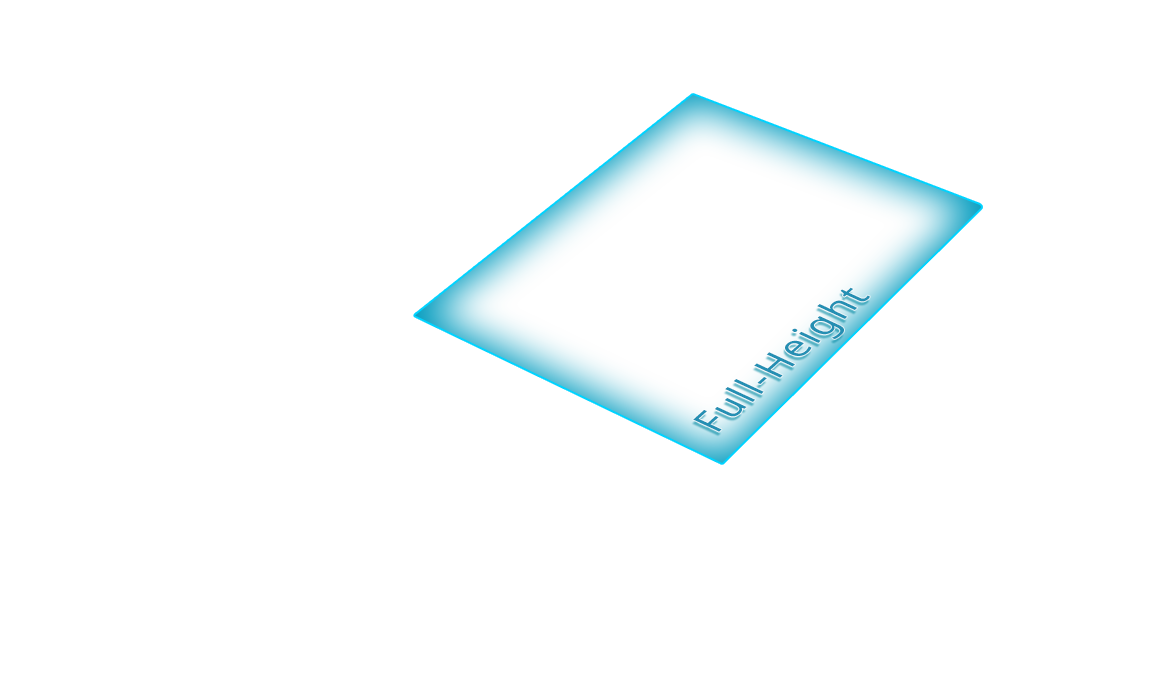

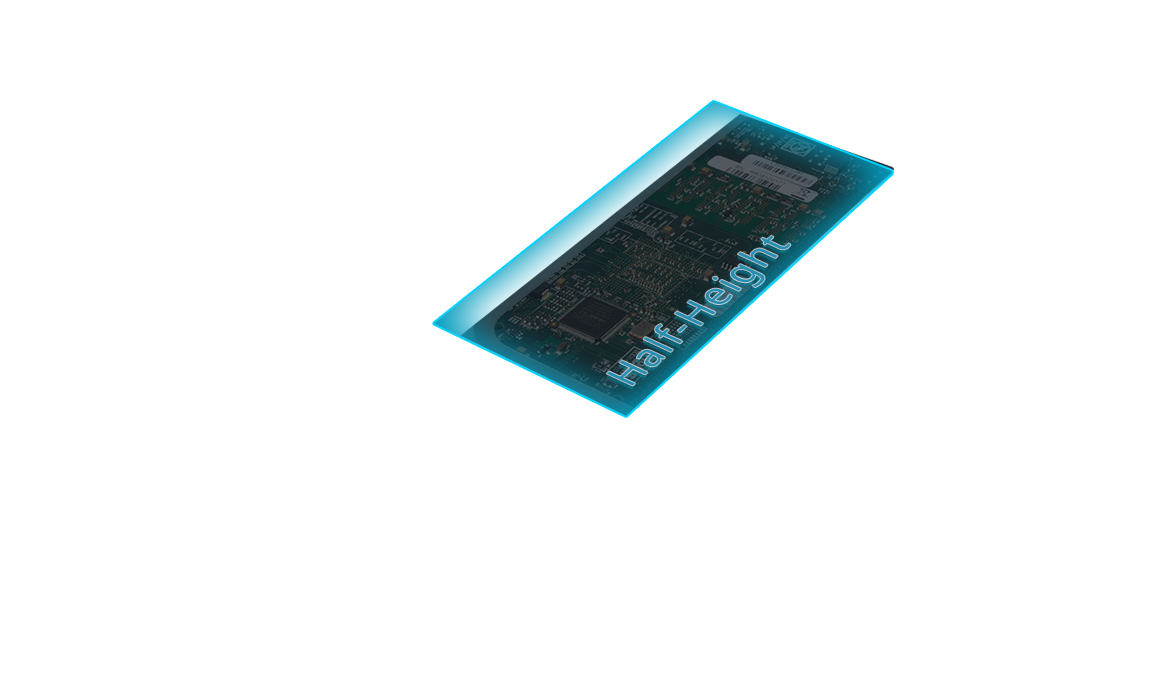

Full-Height PCIe Slot

Completely showing the chassis' compatibility, the IW-RS110-07 supports full-height PCIe slot x 1.
Customers are able to choose InWin's PCIe riser card that can be horizontally installed in the rear of the chassis.


Single PSU

Redundant PSU

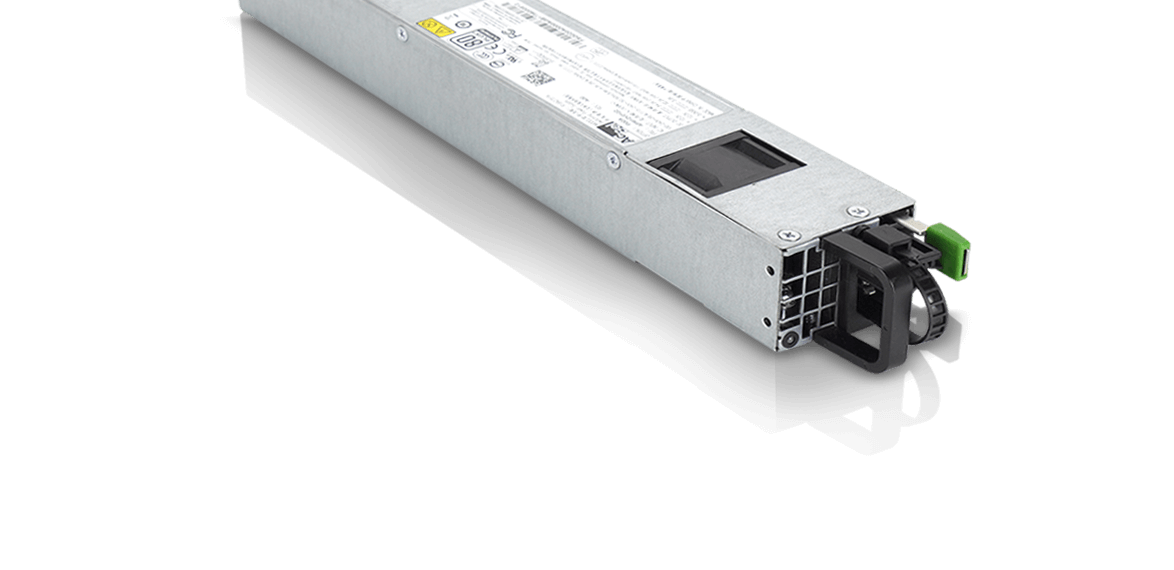

Power Supply Units

InWin's 07 Series 1U rackmounts offer an option of single or redundant power supply units.
The single PSU is compatible with an 80 Plus Gold performance. Our redundant PSUs are equivalent to an 80 Plus Platinum performance,
and avoid the system shutdown when one of the PSUs fails.

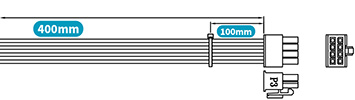

Power Supply Cable Information

Single PSU Cable Information

24-Pin
Main Power Connector

8-Pin CPU

8-Pin CPU

8-Pin
Backplane Power

6-Pin
Backplane Power

4-Pin Peripheral
Power Connector

SATA Power

PMBus
Redundant PSU Cable Information

24-Pin
Main Power Connector

8-Pin CPU

8-Pin CPU

8-Pin
Backplane Power

6-Pin
Backplane Power

SATA Power

PMBus

Superior Heat Dissipation

InWin’s cooling design incorporates anti-vibration with low-noise technology to provide
the most optimum heat dissipation for practically every application.

I/O Shield Back Plate

InWin is capable of customizing the I/O Shield back plate for specific motherboards, with SGCC material, to provide the highest flexibility for your computing needs.




Tool-less Features

InWin screwless items enable customers to effortlessly assemble their rackmount.

Ball-bearing slide rails

Top cover open button

2.5" hot-swap tray

PCle riser card bracket

Dimensions

Specification
Industry Standard EIA-RS310D
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay Supports external 2.5" screwless hot-swap SSD trays x 10
Power Supply Supports:
• 750W 1U 1+1 redundant PSU, 80 Plus Platinum
• 650W 1U single PSU, 80 Plus Gold
Indicator Power LED, LAN1/LAN2 LED, System LED, HDD LED, ID LED
Front Control Panel Power on/off, Reset, NMI, ID SW, USB 3.0 x 1
Backplane-1 • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 10
• SSD: NVMe/SAS/SATA x 10
Backplane-2 • Host: Mini-SAS HD (SFF-8643) x 3, Oculink (SFF-8611) x 10
• SSD: NVMe/SAS/SATA x 10
Cooling Fan 40 x 56mm PWM easy-swap fans x 6, 21500RPM modular design with anti-vibration
Expansion Slot Full-height PCIe slot x 1 (via riser card)
Material • Material: SGCC
• Thickness: 1.0mm
Rail Kit Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only) 676.5 x 438 x 43.4mm
(26.6" x 17.2" x 1.7")
Package Dimensions (DxWxH) 820 x 590 x 175mm
Weight (Chassis Only) • Net weight: 7.32kg
• Gross weight: 10.12kg
Cubic Feet 2.99
Container Information Single packing with pallets:
• 20': 200pcs
• 40': 460pcs
• 40' HQ: 552pcs

12Gb/s Backplane Specifications

Backplane-1 Mini-SAS HD & Slimline Backplane
Dimensions (W x H) 400mm x 37.3mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 10
HDD Interface NVMe/SAS/SATA x 10

Backplane-2 Mini-SAS HD & Oculink Backplane
Dimensions (W x H) 400mm x 37.3mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 3, Oculink (SFF-8611) x 10
HDD Interface NVMe/SAS/SATA x 10
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.

Item Download Preview
IW-RS110-07 eDM
IW-RS110-07 Gallery -
IW-RS110-07 Compatibility List
IW-RS110-07 User Manual
IW-RS110-07 Passive SAS/SATA Backplane User Manual
Item Part Number Description Support Picture
Slide Rail 3RAMIS148100 28" tool-less & ball-bearing slide rail 1
Slide Rail 3RAMIS152300 / 3RAMIS152400 28" tool-less & ball-bearing slide rail with CMA support 1 set
Cable 3RAMW4031700 Mini SAS 12G cable SFF-8643 to SFF-8643, 800mm 1
Power Supply 3RAMAP028600 650W 1U single PSU, 80 Plus Gold 1
Power Supply 3RAMAP030400 750W 1U redundant PDB power cage 1
Power Supply 3RAMAP028000 750W 1U redundant module, 80 Plus Platinum Max.2
Backplane 2RBTVI002100 Mini-SAS HD & Slimline backplane 1
Backplane 2RBTVI002000 Mini-SAS HD & Oculink backplane 1
Back I/O Shield Plate 2RAKIQ020900 Rear I/O shield- ASRock EP2C624D16NM 1
Back I/O Shield Plate 2RAVIQ051200 Rear I/O shield- ASRock EP2C612D16C-4L 1
Back I/O Shield Plate 2RAVIQ051300 Rear I/O shield- ASRock EP2C622D16-2T 1
Back I/O Shield Plate 2RAKIQ020800 Rear I/O shield- ASUS Z11PR-D16 1
Back I/O Shield Plate 2RAKIQ021100 Rear I/O shield- Gigabyte MD61-SC2 1
Back I/O Shield Plate 2RAKIQ021000 Rear I/O shield- Intel H28527 S2600CW2R 1
Back I/O Shield Plate 2RAKIQ021200 Rear I/O shield- Tyan S7100AG2NR 1
Back I/O Shield Plate - InWin can customize the I/O Shield back plate for specific motherboards, with SGCC material, to provide the highest flexibility for your computing needs. 1
SSD Tray 2RAKPH038200 2.5" Screwless hot-swap SSD tray Max.10
SSD Tray 2RAKPH038300 2.5" Screwless hot-swap SSD tray (NVMe) Max.10
Fan 3RAMFB016400 40 x 56mm PWM easy-swap fan, 21500RPM Max.6
Fan 2RAKFB011800 40 x 56mm PWM easy-swap fan & fan bracket Max.6
Riser Card 3RAMPD038000 PCIe Gen3 x16 riser card, left-facing 90 degree design 1
Others 2RAKIP012002 Mesh front panel 1
