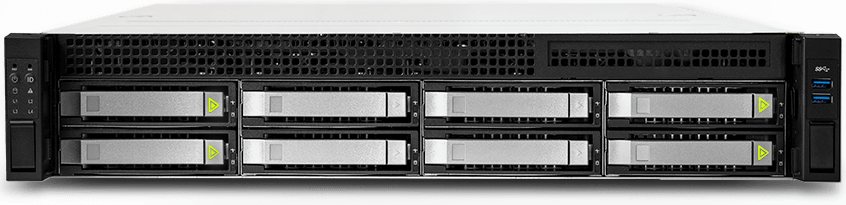

IW-RS208-07

2U NVMe Hybrid Storage Server

.Intel® Xeon Scalable & AMD EPYC family compliant
.Backplanes with Mini-SAS HD or OCuLink connectors
.2.5"/3.5" HDD trays x 8 (optional NVMe trays x 4, distinguishes U.2 NVMe SSDs)
.Rear drive bays support 2 x 2.5" SAS/SATA SSDs for system disks
.Internal disk brackets for 4 x 2.5" SAS/SATA SSDs (one can be replaced with a slim ODD)
.550W/800W redundant power supply, 80 PLUS Platinum CRPS (optional)
.High-speed cooling fans for excellent thermal performance
.Supports low-profile PCle slots x 7



2U NVMe Hybrid Storage Server
Achieving Maximum Cost-Effectiveness

inwin IPC rs208-07
The IW-RS208-07 NVMe hybrid storage server is suitable for the HPC industry for the flexibility to meet the intensive compute or storage needs. It is a high-value, yet economical option for your most intensive compute and storage applications.

Compliant

2.5"/3.5" SSD

Internal drives

x 4 bays

System disks

CRPS

PCle slot x 7

26" deep chassis

80 x 38mm fans x 4

Flexible.
Various Storage Options.

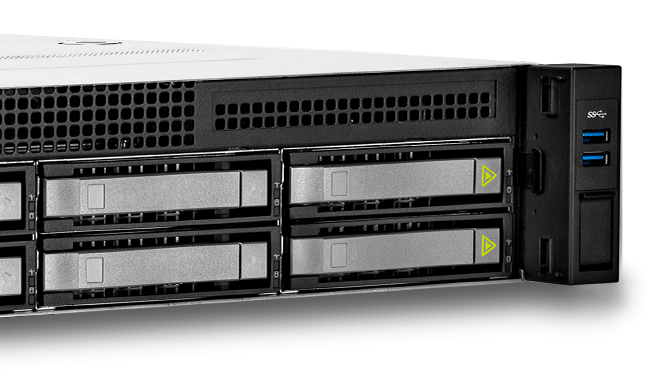

inwin IPC rs208-07 front view

Front

Up to 8 x 2.5"/3.5" hot-swap SAS/SATA drive bays, or 4 x 2.5"/3.5" hot-swap SAS/SATA and 4 x 2.5"(15mm) U.2 NVMe drives bays.

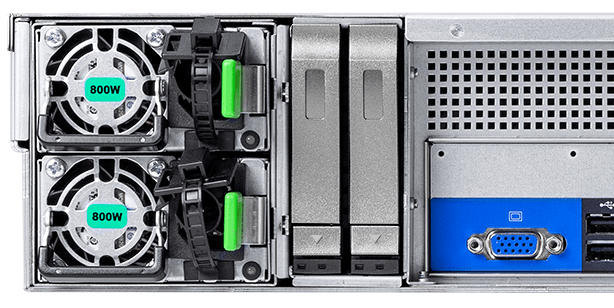

inwin IPC rs208-07 rear view

Rear

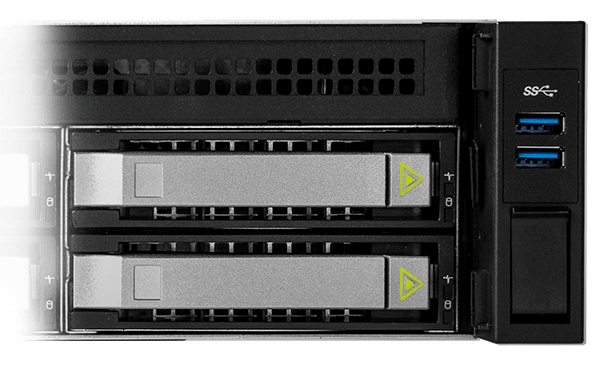

2 x 2.5" SAS/SATA hot-swap SSD bays.
inwin IPC rs208-07 rear view
inwin IPC rs208-07 internal disk


inwin IPC rs208-07 internal disk

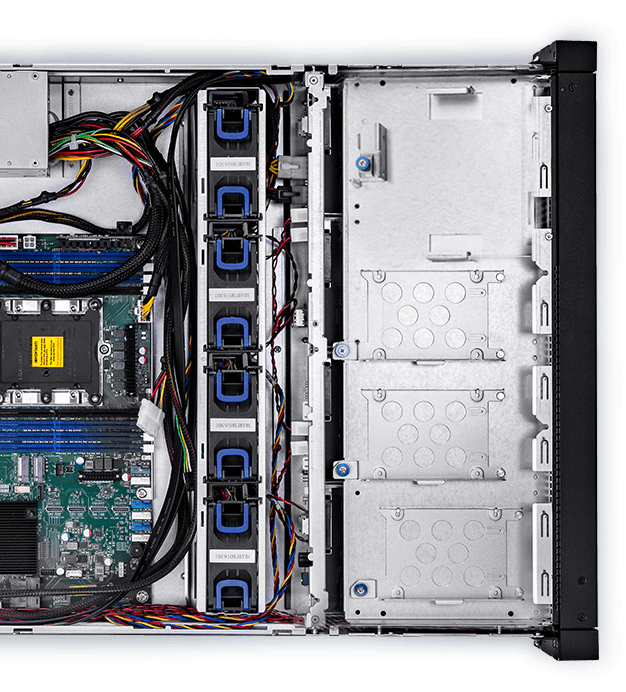

Internal

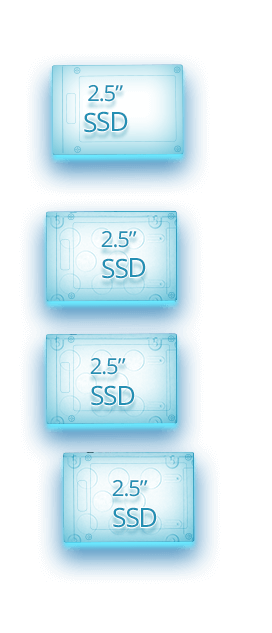

Supports 4 X 2.5" SAS/SATA SSDs (one can be replaced with a slim ODD).

Tool-free thumbscrews are used for mounting internal SSD brackets.

Choose Your Preference

InWin provides different combinations based on customers' preferences for the storage configurations.

SAS/SATA/NVMe
SAS/SATA
inwin IPC rs208-07 product nvme

InWin provides different combinations based on customers' preferences for the storage configurations.
inwin rs208-07 nvme tray
Hot-swap tray
Swapping drives in seconds.
Tool-free design
Mounting/Removing 3.5" HDDs without screws (2.5" SSDs with screws).

Mini-SAS HD & OCuLink or Slimline Backplane

inwin rs208-07 oculink backplane

InWin's exclusive backplane offers connectivity and is designed to support SAS/SATA and NVMe for OCuLink or Slimline host interface.

Mini-SAS HD & OCuLink or Slimline Backplane

Optimized
Cooling Design

The IW-RS208-07 comes with four of InWin's 80 x 38mm PWM hot-swap fans, which provides enhanced thermal cooling solution, anti-vibration, and low noise volume to maximize system performance.
inwin IPC rs208-07 thermal

Excellent heat dissipation

Low noise

Anti-vibration

Stable.
Redundant Power Supplys

Flexible Redundancy Control
Optional 80 PLUS® Platinum Certified CRPS with 550W/800W
inwin icon 80plus

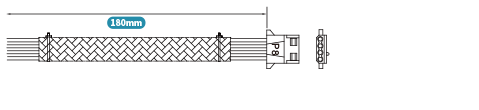

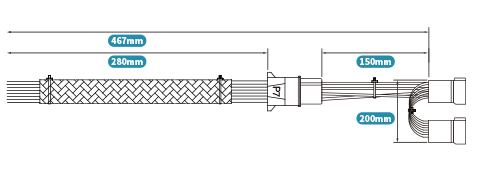

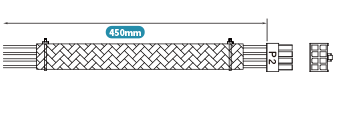

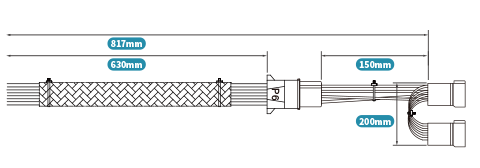

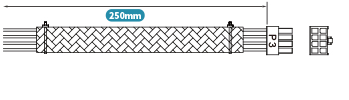

CRPS Cable Information

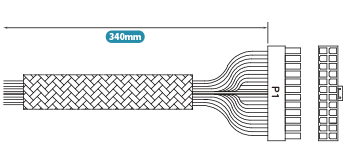

24 pin Main Motherboard

8 pin CPU

8 pin CPU

8 pin BP

6 pin BP

SATA 15 pin X 2
Internal HDD

SATA 15 pin X 2
Internal HDD
4-pin rear
2.5" HDD BP
PMBus

Easy
Maintenance.

The user-friendly design can help you to maintain your server more easily and efficiently.

Ball-bearing slide rails

Hot-swap trays

Top cover screwless open button

Hot-swappable cooling fans

Dimensions

inwin rs208-07 application
Specification
Industry Standard EIA-RS310D
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay • External 2.5"/3.5" hot-swap trays x 8 (optional U.2 NVMe SSD trays x 4)
• Internal 2.5" x 3 or x 4 (via slim ODD conversion tray)
• Rear 2.5" screwless hot-swap HDD trays x 2 (supports SAS 12G)
Power Supply Supports:
• Form factor: 80 Plus Platinum CRPS
• Watt: 550W /800W
Indicator Power LED, LAN1/LAN2/LAN3/LAN4 LED, System LED, ID LED
Front Control Panel Power on/off, Reset, NMI, ID SW, USB3.0 x 2
Backplane Type-1 • Host: Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4
• HDD: SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4
Backplane Type-2 • Host: Mini-SAS HD (SFF-8643) x 2
• HDD: SAS/SATA x 8
Cooling Fan • 80 x 38mm PWM hot-swap fans x 4, 12000RPM
• Modular design with anti-vibration
Expansion Slot Low-profile PCIe slots x 7
Material • Material: SGCC
• Thickness: 1.2mm
Rail Kit Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only) 660 x 448 x 87.5mm
(26" x 17.6" x 3.4")
Package Dimensions (DxWxH) 905 x 610 x 228mm
Weight (Chassis Only) • Net weight: 13.26kg
• Gross weight: 16.56kg
Cubic Feet 4.44
Container Information Single packing with pallets:
• 20': 160pcs
• 40': 336pcs
• 40'HQ: 378pcs

12Gb/s Backplane Specifications

Backplane Type-1 Mini-SAS HD & OCuLink Backplane
Dimension (W x H) 404.5mm x 52mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4
HDD Interface SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4


Backplane Type-2 Mini-SAS HD Backplane
Dimension (W x H) 404.5mm x 52mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 2
HDD Interface SAS/SATA x 8
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.

Item Download Preview
IW-RS208-07 eDM
IW-RS208-07 Gallery -
IW-RS208-07 Compatibility List
IW-RS208-07 User Manual
IW-RS208-07 Mini-SAS HD Backplane User Manual
IW-RS208-07 OCuLink Backplane User Manual
Item Part Number Description Support Picture
Slide Rail 3RAMIS148100 28" tool-less & ball-bearing slide rail 1
Slide Rail 3RAMIS152300/ 3RAMIS152400 28" tool-less & ball-bearing slide rail with CMA support 1 set
Cable 3RAMW4031700 Mini SAS 12G SFF-8643 to SFF-8643 cable, 800mm 1
Power Supply 3RAMAP025101 80 Plus Platinum CRPS 550W Max. 2
Power Supply 3RAMAP025201 80 Plus Platinum CRPS 800W Max. 2
Power Supply 3RAMAP042501 CRPS PDB 1
Backplane 2RBTVI005600 Mini-SAS HD & OCuLink backplane 1
Backplane 2RBTVI004800 Mini-SAS HD backplane 1
HDD Tray 2RAKPH057702 2.5"/3.5" hot-swap HDD tray (gray color) Max. 8
HDD Tray 2RAKPH038002 2.5" /3.5" hot-swap HDD tray (black color) Max. 8
HDD Tray 2RAKPH063701 2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol) Max. 4
HDD Tray 2RAKPH038102 2.5"/3.5" hot-swap HDD tray (black color with NVMe symbol) Max. 4
HDD Tray 2RAKPH057800 2.5" Screwless hot-swap SSD rear tray (gray color) Max. 2
HDD Tray 2RAKPH038200 2.5" Screwless hot-swap SSD rear tray (gold color) Max. 2
Fan 3RAMFB016301 80 x 38mm PWM hot-swap, 12000RPM, 6 pin Max. 4
Fan 2RAKFB011601 80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6 pin Max. 4
Others 2RAKIP022700 Mesh front panel 1
Others 3RAMRW011300 Intrusion switch/ 800mm 1
