IW-RS212-07

2U NVMe Hybrid Storage Server

.Intel® Xeon Scalable family compliant
.Backplanes with Mini-SAS HD, OCuLink or Slimline connectors

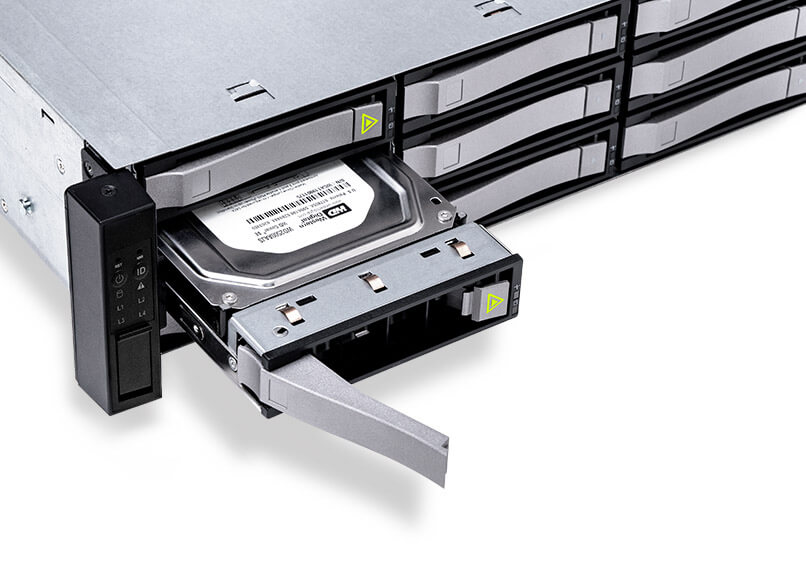

.2.5"/3.5" hot-swap trays x 12 (optional NVMe trays x 4, distinguishes U.2 NVMe SSDs)
.Tool-less design for 2.5"/3.5" HDD tray
.End-to-end 12Gbps SAS host, expander, and disk support
.2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis
.Highly efficient 1600W, 80 Plus® Platinum CRPS (optional)
.High-speed cooling fans for excellent thermal performance
.Supports tool-less ball-bearing slide rails

NVMe-Based Storage Rackmount

Featuring all-flash U.2 NVMe, the IW-RS212-07 supports Intel® Xeon Scalable family and is designed for use in a wide range of industrial applications.

Intel® Xeon Scalable family
2.5"/3.5" HDD
x 4 bays
System disks
CRPS
80 x 38mm fans x 4
26" deep chassis
28" slide rails

Ultra-High Performance and a Variety of Business Applications

The IW-RS212-07 provides a high-performance solution for cloud computing, enterprise, software-defined storage, virtualization, data analytics, and much more.

Highly Flexible Scalability

The IW-RS212-07 has a myriad of storage configurations
such as 12 x SAS/SATA or 8 x SAS/SATA + 4 x U.2 NVMe drives.

It also offers a choice of 2 x 2.5" SAS/SATA SSD drive bays at the rear of the chassis.

The converter drive tray is compatible with either a 2.5" or a 3.5" drive.

Mini-SAS HD & Slimline or OCuLink Backplane

InWin's backplane possesses great connectivity and is designed to support SAS/SATA, and NVMe for Slimline or OCuLink host interface.

Optimal Heat Distribution

InWin’s hot-swappable fans, featuring anti-vibration and a low noise volume, have optimal heat dissipation by means of a strong air current.

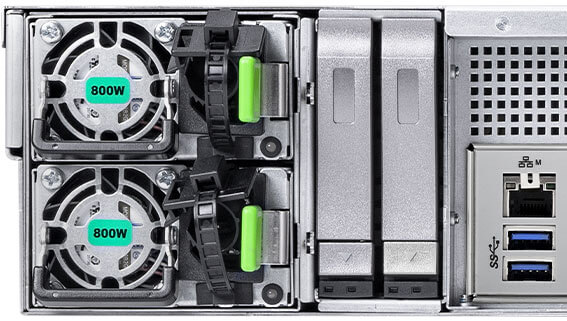

Common Redundant Power Supply

Redundant power supply units ensure the rackmount’s uptime
and durability even if one of the PSUs fails.

CRPS Cable Information


24-Pin Main Motherboard

4-Pin Expander

4-Pin Rear 2.5" HDD BP

6-Pin BP

6-Pin BP

8-Pin BP

8-Pin CPU

8-Pin CPU

PMBus

Tool-less Features

InWin’s tool-less items enable users to effortlessly assemble their rackmount.

Ball-bearing slide rails

Top cover open button

3.5" to 2.5" HDD tray

Hot-swap fan modules

Dimensions

Specification
Industry Standard EIA-RS310D
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay • External 2.5"/3.5" hot-swap trays x 12 (optional U.2 NVMe SSD tray x 4)
• Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps)
Power Supply Supports:
• Form factor: 80 Plus Platinum CRPS
• Watt: 550W/800W/1200W/1600W
Indicator Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED
Front Control Panel Power on/off, reset, NMI, ID SW, USB 3.0 x 2
Backplane Type-1 • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4
• HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
Backplane Type-2 • Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4
• HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
12Gbps Expander Module Supports LSI 3 x 36R expander
Cooling Fan 80 x 38mm PWM hot-swap fans x 4, 12000RPM
Modular design with anti-vibration
Expansion Slot Low-profile PCIe slots x 7
Material • Material: SGCC
• Thickness: 1.0mm
Rail Kit Supports 28" tool-less & ball-bearing slide rails

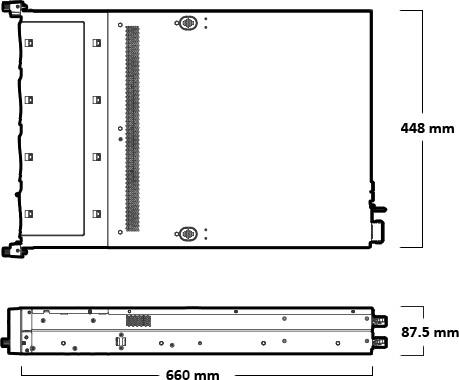

Product Dimensions (DxWxH; Chassis Only) 660 x 448 x 87.5mm
(26" x 17.6" x 3.4")

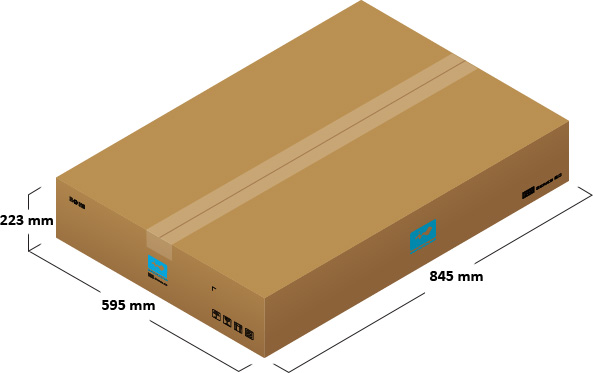

Package Dimensions (DxWxH) 845 x 595 x 223mm
Weight (Chassis Only) • Net weight: 13.09kg
• Gross weight: 16.51kg
Cubic Feet 3.96
Container Information Single packing with pallets:
• 20': 160pcs
• 40': 368pcs
• 40' HQ: 414pcs

12Gbps Backplane Specifications

Backplane Type-1 Mini-SAS HD & Slimline Backplane
Dimension (W x H) 405mm x 72.3mm
Backplane Type Active with expander onboard
Host Interface Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4
HDD Interface SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4

Backplane Type-2 Mini-SAS HD & OCuLink Backplane
Dimension (W x H) 405mm x 72.3mm
Backplane Type Active with expander onboard
Host Interface Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4
HDD Interface SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.

Item Download Preview
IW-RS212-07 eDM
IW-RS212-07 Gallery -
IW-RS212-07 Compatibility List
IW-RS212-07 User Manual
IW-RS212-07 SAS3 Backplane User Manual (Cobra Series)
Item Part Number Description Support Picture
Slide Rail 3RAMIS148100 28" tool-less & ball-bearing slide rail 1
Slide Rail 3RAMIS152300 / 3RAMIS152400 28" tool-less & ball-bearing slide rail with CMA support 1 set
Cable 3RAMW4031700 Mini SAS 12Gbps SFF-8643 to SFF-8643 cable, 800mm 1
Power Supply 3RAMAP025101 80 Plus Platinum 550W CRPS Max. 2
Power Supply 3RAMAP025201 80 Plus Platinum 800W CRPS Max. 2
Power Supply 3RAMAP026501 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) Max. 2
Power Supply 3RAMAP038500 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) Max. 2
Power Supply 3RAMAP042800 CRPS PDB 1
Backplane 2RBTVI001402 Mini-SAS HD & Slimline backplane 1
Backplane 2RBTVI005300 Mini-SAS HD & OCuLink backplane 1
HDD Tray 2RAKPH057702 2.5"/3.5" hot-swap HDD tray (gray color) Max. 12
HDD Tray 2RAKPH038002 2.5" /3.5" hot-swap HDD tray (black color) Max. 12
HDD Tray 2RAKPH063701 2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol) Max. 4
HDD Tray 2RAKPH038102 2.5"/3.5" hot-swap HDD tray (black color with NVMe symbol) Max. 4
HDD Tray 2RAKPH057800 2.5" Screwless hot-swap SSD rear tray (gray color) Max. 2
HDD Tray 2RAKPH038200 2.5" Screwless hot-swap SSD rear tray (gold color) Max. 2
Fan 3RAMFB016301 80 x 38mm PWM hot-swap fan, 12000RPM, 6pin Max. 4
Fan 2RAKFB011601 80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin Max. 4
Others 2RAKIP022700 Mesh front panel 1
Others 3RAMRW011300 Intrusion switch / 800mm 1
