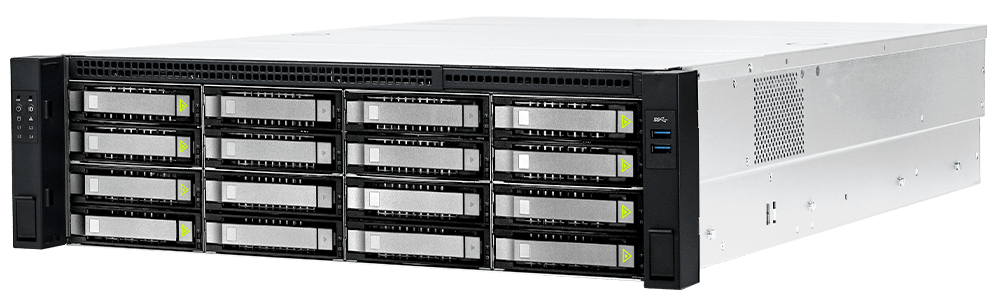

IW-RS316-07

3U NVMe Hybrid Storage Server

.Intel® Xeon Scalable & AMD EPYC family compliant
.Supports 2.5"/3.5" hot-swap HDD trays x 16
.Optional NVMe trays x 8, green trays distinguish U.2 NVMe SSDs
.Rear drive bays support 2 x 2.5" SAS/SATA SSDs for system disks
.Backplanes with Mini-SAS HD, OCuLink or Slimline connectors
.End-to-end 12Gbps SAS host, expander and disk support
.Internal disk brackets for 3 x 2.5" SAS/SATA SSDs (one is optional), 1 x slim ODD
.Supports full-height PCle slots x 7
.Highly efficient 550W/800W/1200W/1600W, 80 Plus® Platinum CRPS (optional)
.High-speed cooling fans for excellent thermal performance

Highly Versatile Hybrid NVMe Storage Server

The IW-RS316-07 NVMe Hybrid Storage Server is compliant with Intel® Xeon Scalable processors & AMD EPYC family.
It features additional flexibility and capacity expansion to meet your requirements for advanced computing.

Compliant
2.5"/3.5" SSD
Internal drives
x8 bays
System disks
CRPS
PCIe slots x 7
26" deep chassis
80 x 38mm fans x 4

Tool-free design allow users mount/remove 3.5" HDDs without screws (2.5" SSDs with screws).


Hot-swap tray, swap drives in seconds. (Gray trays are designed to distinguish between U.2 NVMe SSDs and normal disks.)

Variety of Storage Options

The IW-RS316-07 can be configured as either up to 16 x SAS/SATA or 8 x SAS/SATA and 8 x U.2 NVMe drives at front of the server.
The 2.5"(15mm) U.2 form factor design works seamlessly with our latest generation backplanes.

More Drive Space

Rear: 2 X 2.5" SAS/SATA hot-swap SSD bays

Internal: 3 X 2.5” SAS/SATA SSDs (one is optional) and slim ODD X 1. Independent bracket for each disk and fix it through screws.

Mini-SAS HD & Slimline or OCuLink Backplane

InWin’s exclusive backplane comes with great connectivity and is designed to support SAS/SATA and NVMe for Slimline or OCuLink host interface. The onboard 12G SAS expander mainly manages the communication of SAS/SATA HDD interface, it integrates end-to-end connectivity and reduces cable clutter.

80 Plus Platinum Level
Redundant Power Supply

InWin’s 07 series offers optional 80 Plus® Platinum Certified CRPS with 550W/800W/1200W/1600W. Our efficient and reliable redundant power supplies are designed to safeguard your system from risk of power failure and increases the server’s stability.

CRPS Cable Information


24-pin Main Motherboard

8 pin CPU

8 pin CPU

8 pin BP

8 pin BP

6 pin BP

6 pin BP

4-pin rear
2.5" HDD BP

SATA 15 pin
Internal HDD

PMBus

Premium Ventilation Design

The IW-RS316-07 comes with four of InWin’s 80 x 38mm PWM hot-swap fans, which provides enhanced thermal cooling solution, anti-vibration, and low noise volume to maximize system performance.


Anti-vibration

Low noise

Excellent heat
dissipation


Mix & Match

Multi-color HDD tray options cater to the different hard drive functions and distinguishes them from each other.

SAS/SATA/NVMe



Mix & Match

Multi-color HDD tray options cater to the different hard drive functions and distinguishes them from each other.

SAS/SATA/NVMe



Mix & Match

Multi-color HDD tray options cater to the different hard drive functions and distinguishes them from each other.

SAS/SATA/NVMe

Hassle-free Maintenance

Ball-bearing slide rails

Hot-swap trays

Hot-swappable cooling fan

Top cover screwless
open button

Dimensions

Specification
Industry Standard EIA-RS310D
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay • External 2.5"/3.5" hot-swap trays x 16 (optional U.2 NVMe SSD trays x 8
• Internal 2.5" SSDs x 3 (one for option) and slim ODD x 1
• Rear 2.5" screwless hot-swap HDD trays x 2 (supports SAS 12Gbps)
Power Supply Supports:
• Form factor: 80 Plus Platinum CRPS
• Watt: 550W/800W/1200W/1600W
Indicator Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED
Front Control Panel Power on/off, reset, NMI, ID SW, USB3.0 x 2
Backplane Type-1 • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8
• HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8
Backplane Type-2 • Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8
• HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8
12Gbps Expander Module Supports Broadcom SAS 35 x 36R expander
Cooling Fan • 80 x 38mm PWM hot-swap fans x 4, 12000RPM
• Modular design with anti-vibration
Expansion Slot Full-height PCIe slots x 7
Material • Material: SGCC
• Thickness: 1.2mm
Rail Kit Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only) 660 x 448 x 132.1mm
(26" x 17.6" x 5.2")
Package Dimensions (DxWxH) 845 x 595 x 267mm
Weight (Chassis Only) • Net weight: 17.63kg
• Gross weight: 21.03kg
Cubic Feet 4.74
Container Information Single packing with pallets:
• 20': 140pcs
• 40': 322pcs
• 40'HQ: 368pcs

12Gbps Backplane Specifications

Backplane Type-1 Mini-SAS HD & Slimline Backplane
Dimension (W x H) 405mm x 106mm
Backplane Type Active with expander onboard
Host Interface Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8
HDD Interface SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8

Backplane Type-2 Mini-SAS HD & OCuLink Backplane
Dimension (W x H) 405mm x 106mm
Backplane Type Active with expander onboard
Host Interface Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8
HDD Interface SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.

Item Download Preview
IW-RS316-07 eDM
IW-RS316-07 Gallery -
IW-RS316-07 Compatibility List
IW-RS316-07 User Manual
IW-RS316-07 OCuLink Backplane User Manual
IW-RS316-07 Slimline Backplane User Manual
Item Part Number Description Support Picture
Slide Rail 3RAMIS148100 28" tool-less & ball-bearing slide rail 1
Slide Rail 3RAMIS152300 / 3RAMIS152400 28" tool-less & ball-bearing slide rail with CMA support 1 set
Cable 3RAMW4031700 Mini SAS 12Gbps SFF-8643 to SFF-8643 cable, 800mm 1
Power Supply 3RAMAP025101 80 Plus Platinum 550W CRPS Max. 2
Power Supply 3RAMAP025201 80 Plus Platinum 800W CRPS Max. 2
Power Supply 3RAMAP026501 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) Max. 2
Power Supply 3RAMAP038500 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) Max. 2
Power Supply 3RAMAP042800 CRPS PDB 1
Backplane 2RBTVI003402 Mini-SAS HD & Slimline backplane 1
Backplane 2RBTVI005400 Mini-SAS HD & OCuLink backplane 1
HDD Tray 2RAKPH057702 2.5"/3.5" hot-swap HDD tray (gray color) Max. 16
HDD Tray 2RAKPH038002 2.5" /3.5" hot-swap HDD tray (black color) Max. 16
HDD Tray 2RAKPH063701 2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol) Max. 8
HDD Tray 2RAKPH038102 2.5"/3.5" hot-swap HDD tray (black color with NVMe symbol) Max. 8
HDD Tray 2RAKPH057800 2.5" Screwless hot-swap SSD rear tray (gray color) Max. 2
HDD Tray 2RAKPH038200 2.5" Screwless hot-swap SSD rear tray (gold color) Max. 2
HDD Tray 2RAHID022101 Internal 2.5" HDD bracket 1
Fan 3RAMFB016301 80 x 38mm PWM hot-swap, 12000RPM, 6pin Max. 4
Fan 2RAKFB011601 80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin Max. 4
Others 2RAKIP023200 Mesh front panel 1
Others 3RAMRW011300 Intrusion switch / 800mm 1
